Further Configuration

Further Configuration

RSI Port / UDP Server IP Configuration

If you want to change the RSI port number or the UDP server IP (in order to use a different PC IP instead of the suggested 172.22.10.3) of an already installed drag&bot driver then please follow the steps below.

  1. Log in as Expert.

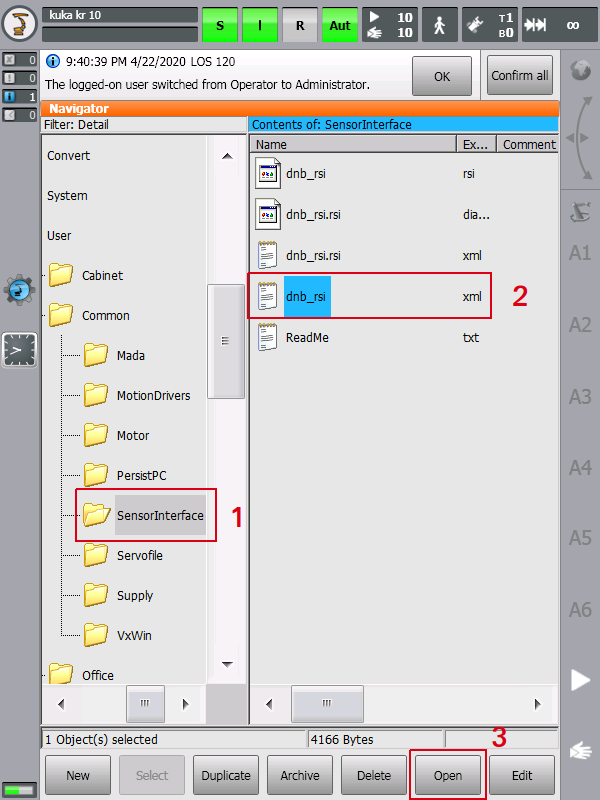

  2. In the KUKA navigator, navigate to C:\KRC\ROBOTER\Config\User\Common\SensorInterface , select the dnb_rsi XMLfile and click on Open.
    001 Image

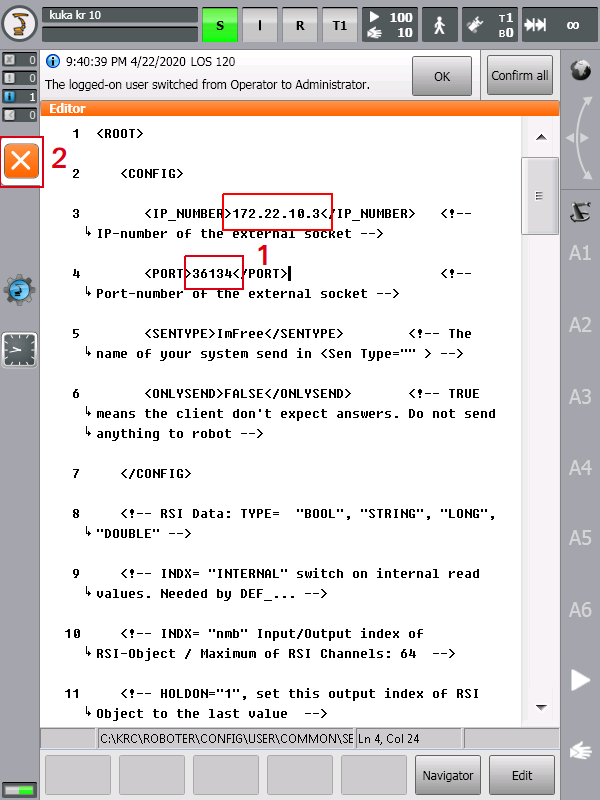

  3. Change the port number under the XMl tag PORT and/or the UDP server IP under the XML tag IP_NUMBER. Then click the close icon. You can open the on-screen-keyboard by clicking the physical button Network Configuration Icon Xubuntu in the left side of the KUKA pendant.
    002 Image

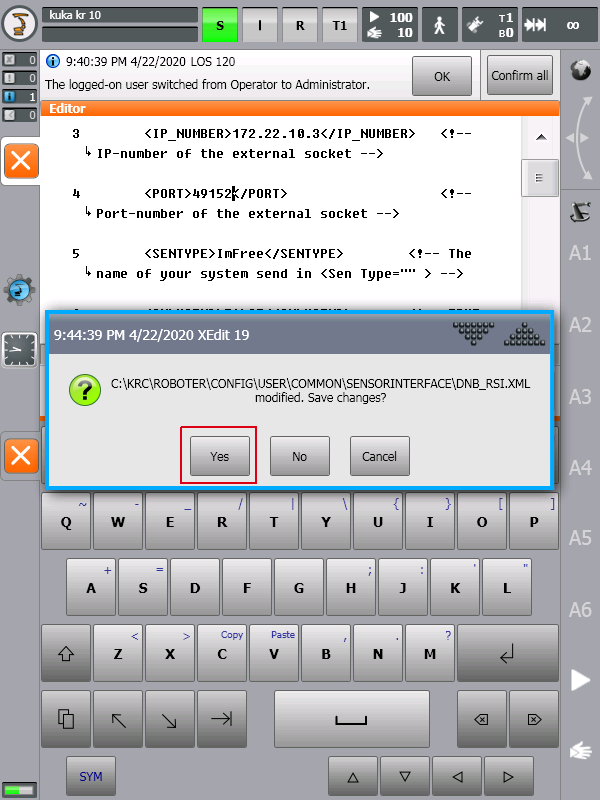

  4. Click Yes.
    003 Image

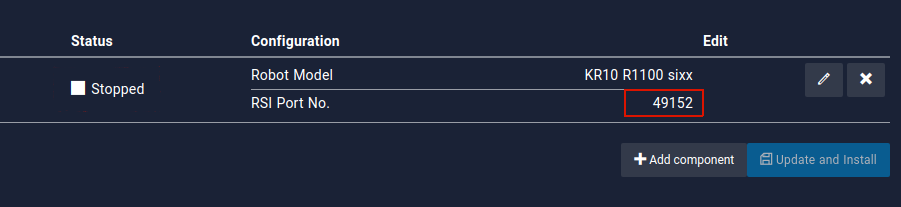

  5. Enter the new port number in drag&bot and, if necessary, change the PC IP address in the operating system to match the one defined in the dnb_rsi XML file.
    038 Image
